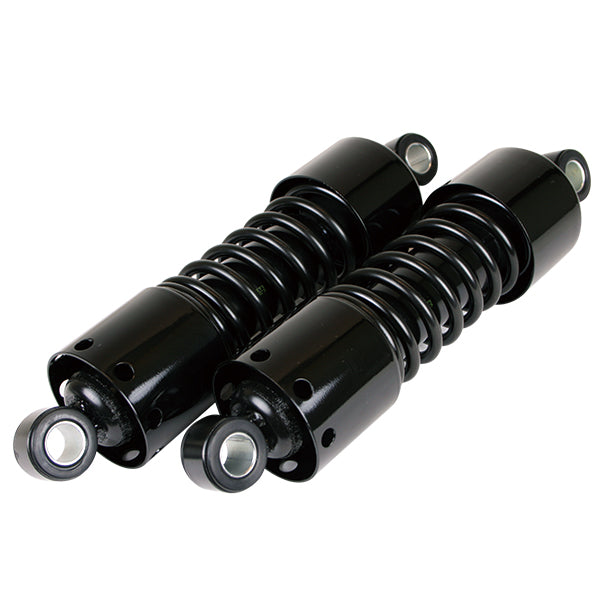

G-SUSPENSION265 / Black (14-14)

265mm: the lowest, with the best styling
Perfect for chopper and bobber styles!

Our top-pick suspension, creating the "triangle line" that defines a chopper while still keeping a good ride!

Great reach to the ground!

If your feet barely reach the ground and you get nervous at traffic lights, try installing lowering suspension!


*Rider 155cm, SR400/500, G-SUSPENSION265 riding image

Lowering shocks that aren't too stiff!

G-SUSPENSION offers up to 40mm of stroke! A comfortable ride at "the ideal height."
*However, it is stiffer than stock suspension. This is only compared with typical lowering suspension

5-step stiffness adjustment!

The suspension offers 5-step preload adjustment! Choose the stiffness that best suits you and your bike.
*Set to the softest setting at shipment.

Please note

*Depending on the model, it cannot be used with the stock chain cover.
*May interfere depending on the tire and fender installed.

Fitment

SR400/500、DRAGSTAR250、SRV250、GB250、VIRAGO250
*Also fits other models with 14mm upper and lower mounting holes.

Size

Mounting hole distance: approx. 267mm Upper cover diameter: approx. 70mm Lower diameter: approx. 63mm　

Material

Steel

Contents

Main unit x2

How to adjust suspension stiffness

*Referring to the diagram below, use the adjustment tool and firmly turn the outer cover.
　(Each step feels like a click up a step)
*Please adjust the suspension while it is installed on the bike.

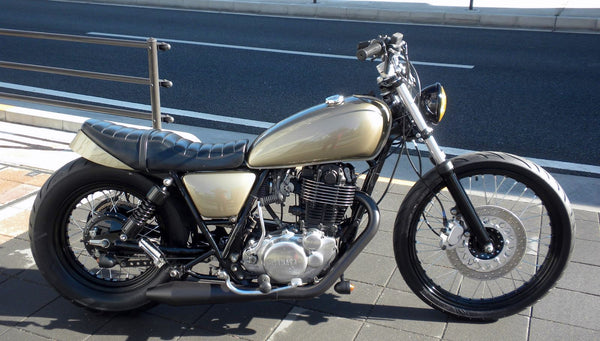

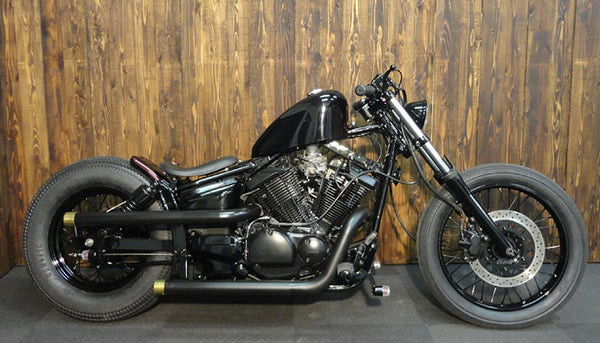

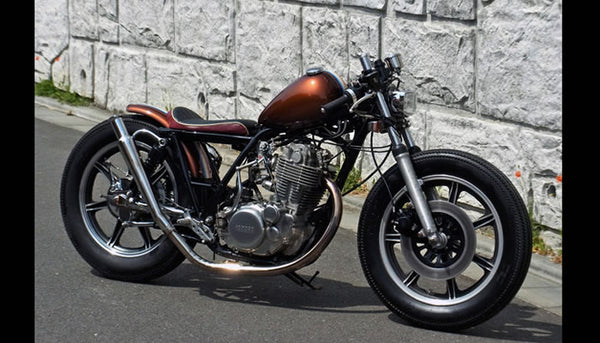

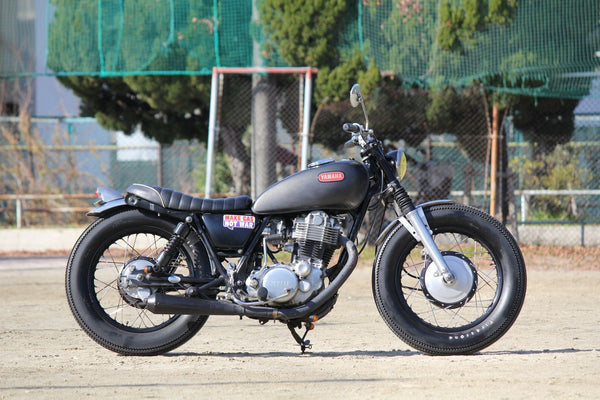

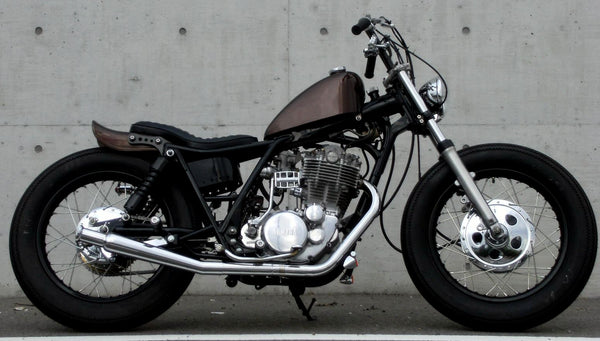

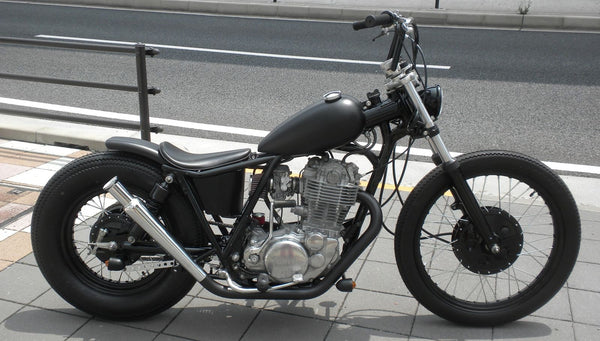

G-SUSPENSION265 Black installed

ESTRELLA

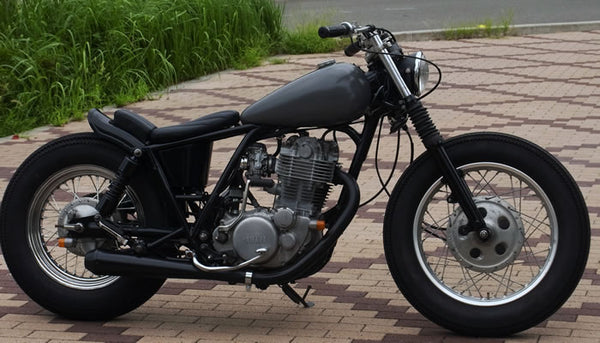

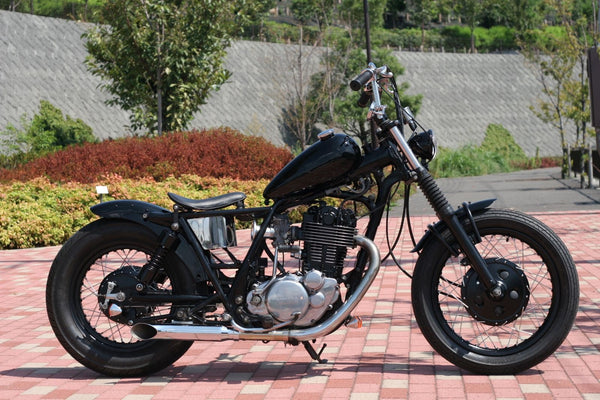

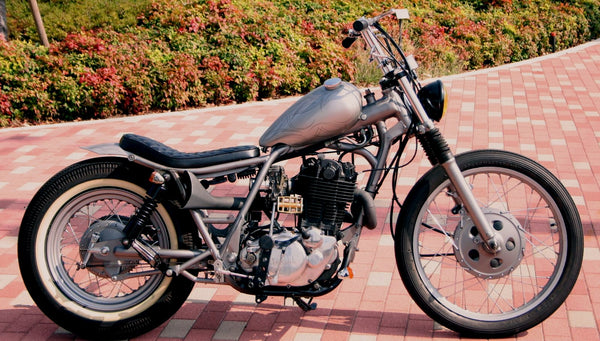

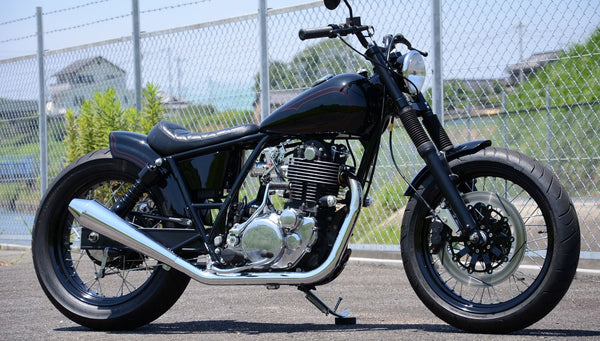

SR400/500

250TR

Sizes and fitment list

<Shock collars top 14mm/bottom 14mm>

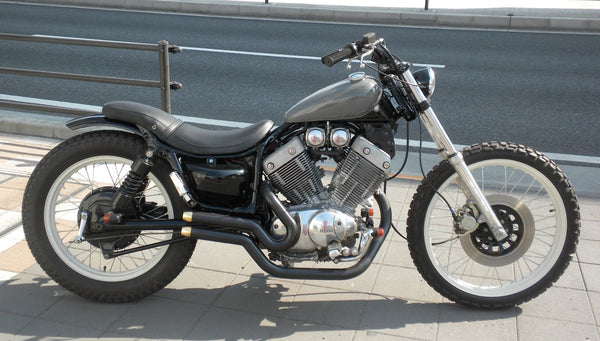

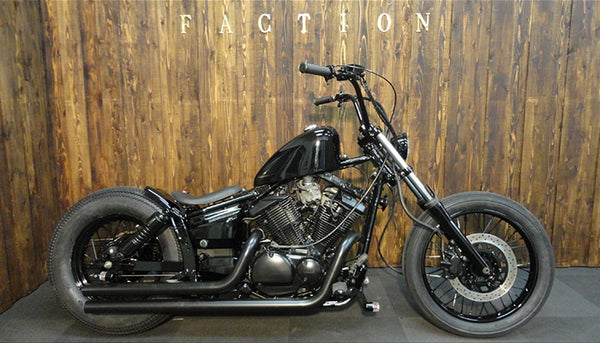

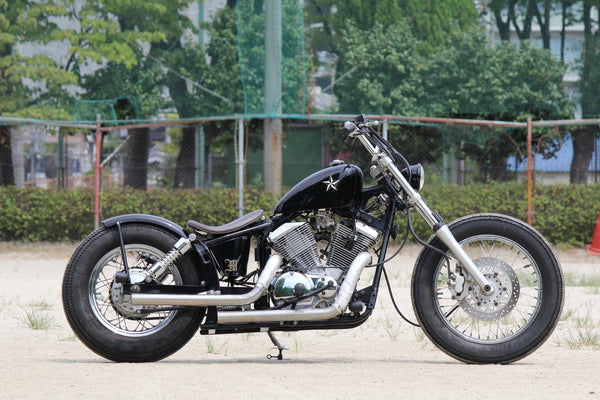

SR400/500、DS250、GB250、VIRAGO250

---

<Shock collars top 14mm/bottom 10mm>
250TR、W400/650、CB400SS

---

<Shock collars top 10mm/bottom 10mm>
ESTRELLA

---

<Shock collars top 12mm/bottom 12mm>
GRASSTRACKER (Big Boy requires cutting the rear frame)

---

<Shock collars top 16mm/bottom 12mm>
MAGNA250

---

<Shock collars top 16mm/bottom 16mm>
SHADOW400

---

G-SUSPENSION265 features

Stiffer than the 280mm, but it achieves the ideal low stance. Even so, it doesn't have the jarring hit to the gut of conventional short shocks, so the 265 is highly recommended if looks come first.

G-SUSPENSION280 features

A very soft ride, comfortable enough for long touring. The perfect length to match anything from a lightly customized stock bike to a full custom chopper. For riders who want both looks and comfort.
