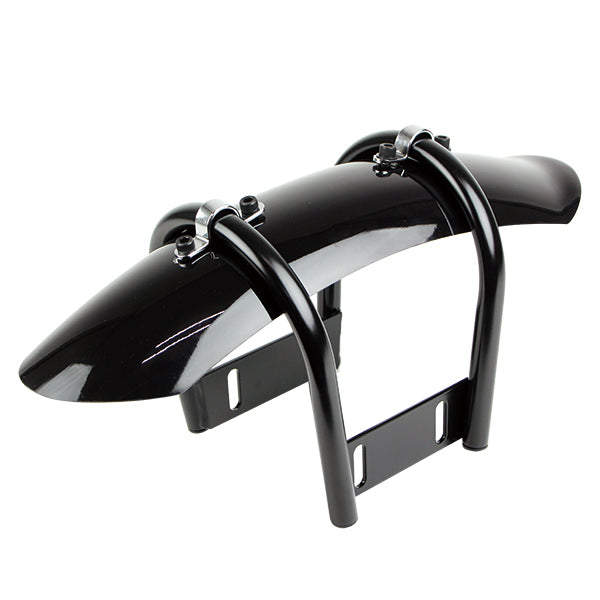

Pipework Front Fender Black XL/DYNA (39mm Narrow Glide)

Doesn't spoil your style
GOODS original front fender

Bolt-on front fender. Mounting position adjusts up and down, so it can be installed even with tall-profile tires like Firestone. The bracket doubles as a stabilizer, also improving front rigidity.

Compatible with FIRESTONE and more

Until now, fitting a fender with tall-profile tires was difficult, but our pipe-work fender installs without any problem. If you'd given up on a front fender, this is your solution.

A design that doesn't get in the way of your style

Designed to be as simple as possible and blend into the bike, so it looks natural even on chopper and bobber styles. As the installation images for each model show, it suits any style perfectly.

Doubles as a stabilizer to increase front rigidity

This one part restores the front rigidity lost by going fenderless, for a "full custom you can actually ride."

Fitment

Sportster series (See fitment list)
Dyna series (Including FXR) '88-'05 *Not compatible with FXDWG

Sportster fitment list

'88-'10 models

All models

---

2011 model year

883N/883R/1200N/1200L

---

2012 model year

883N/883R/1200N/1200V

---

2013 model year

883N/883R/1200V

---

2014 model year

883N/883R/1200V

---

2015 model year

883N/883R/1200V

---

2017 model year

883N/1200V

---

2018 model year

883N/1200V

---

2019 model year

883N/1200V

---

2020 model year

883N/1200V

---

2021 model year

883N/1200V

---

Size

Stabilizer:
Left-right width: approx. 155mm Height: approx. 180mm Front-rear width: approx. 168mm Tube diameter: φ15.9mm Fender width: approx. 104mm Fender outer length: approx. 410mm

<Max tire outer diameter> 736mm (716mm with fender)
<Max tire width> 110mm
(If 96mm or wider, tighten the stabilizer bolts after installing the tire)

Material

Fender: FRP Bracket: steel

Contents

Fender x1 Bracket x1 set Pipe-work stabilizer x1

Please note

*The front wheel must be removed for installation.
*Confirmed compatible with 4.00-size FIRESTONE tires.
*It may not fit if the tire type or size is too large.

About FRP / black gelcoat

• FRP is black from the start, but this is not a painted black and is not a "clean black." It can be used as is, but it will discolor and fade over time, so we recommend painting it.
• FRP products have unavoidable scuff marks from the molding process, such as when removed from the mold. Slight fading is also considered "within the acceptable range for FRP products." Please think of it strictly as a base for paint.
• FRP products may crack if excessive force is applied.

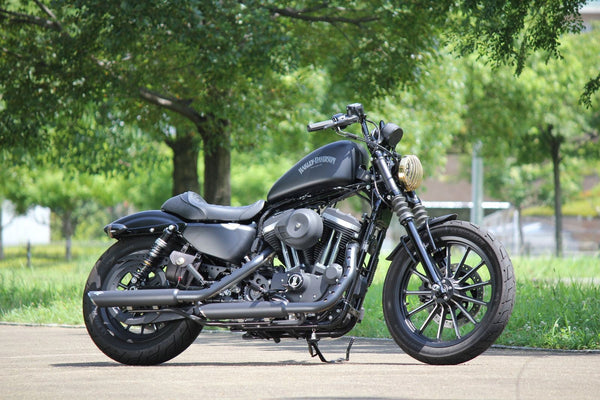

Image courtesy of
