Part No.: 61-89591

LED Inset Taillight KIT Clear

¥15,950 JPY

Shipping & tax quoted on inquiry

In stock · Ships same day20+ in stock

Inquire

Installation difficultyNORMAL

VERY EASY

EASY

NORMAL

TRICKY

HARD

PROFESSIONAL

Wiring modification may be required

Some riders may find this installation difficult.
If you're unsure about the work, please consult a GOODS parts installer near you.

LED taillight that mounts under the rear fender. For fenders on XL models with integrated turn signal/taillights, etc.

Categories for this part:
HARLEY DAVIDSON Lighting Lighting Sportster Taillight Units Taillights Taillights Taillights

Mounts under the fender!
LED taillight kit for XL

LED taillight that mounts on the underside of the rear fender. For the fenders of XL1200X/V/N and 883N models with integrated turn signal/taillights, or when the fender has been cut.

Please note

*Requires converting to a side-mount plate, replacing the turn signal/taillights, and modifying the wiring.
*Use the included couplers if they match your main harness.

Fitment

XL1200X ('10-'16)/V ('12-'16)/N ('09-'12) /XL883N ('09-'16)

Wire colors

Red: brake light Yellow: taillight Black: ground

Size

Lens width: approx. 176mm Center height: approx. 23mm

Material

Resin

Contents

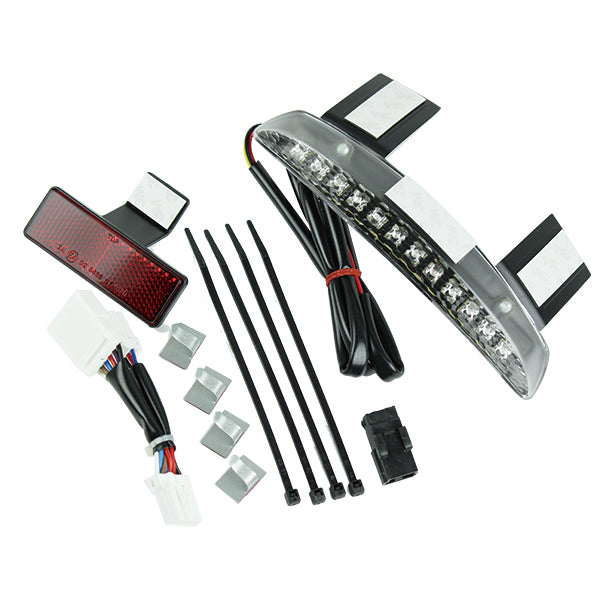

Body x1 Connecting harness x1 Coupler x1 Wire clips x4 Zip ties x4 Reflector x1

FAQ

Q Can the "LED Inset Taillight KIT" be installed on the stock rear fender of a 2014 XL1200X?

Yes. It was originally a taillight for the stock XL1200X fender, and our fender is made to match that taillight.

Q Are there any issues with the angle of the taillight once installed?

It can be used without any problems.

Q I have a 2012 XL883R. Can I use the included couplers?

The wiring specs seem to have changed from 2014 on, so it is very likely not plug-and-play.
Please modify the wiring before installing.

Q I have a 2017 XL883L. Can the inset taillight for '14- be installed?

The inset taillight for '14- is made for the 883N.
The wiring is different between the 883L and 883N, so it cannot be installed as a bolt-on
*If you are also replacing the fender, I think at least some wiring modification will be needed

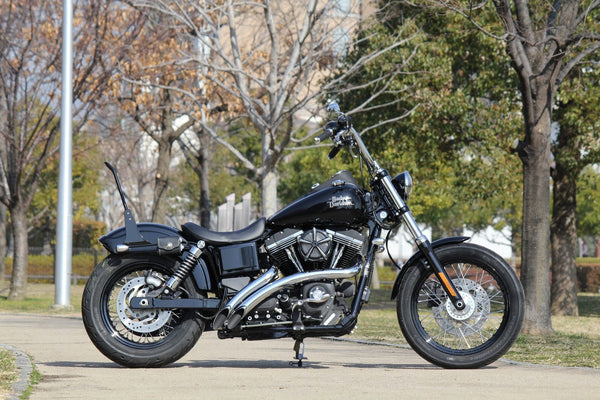

CUSTOM GALLERY
