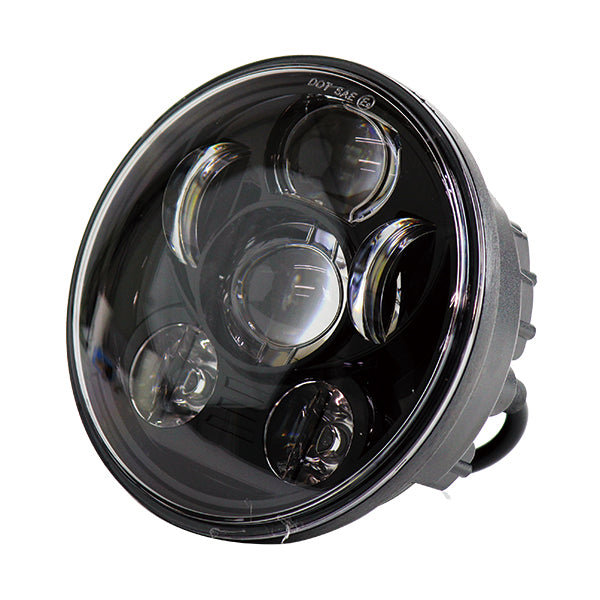

5-3/4 inch Projector LED Headlight Unit

5-3/4 inch LED headlight unit

5-3/4 inch LED headlight unit. Fits HD stock 5-3/4 headlights.
If the terminals do not fit inside the light body, wiring modification such as adding bullet connectors is required.

When used in a 5-3/4 inch "Bates-type light"

It can be installed, but you will need to bend the tabs that hold the unit and avoid the high-beam indicator bulb and its bracket.

Wire colors

Yellow: Low beam Red: High beam Black: Negative


*Click to enlarge

Material

Lens: Polycarbonate Light unit: Aluminum

Contents

Main unit x1

Size

Lens seating diameter: φ135mm Lens outer diameter: φ142mm Front-to-back length: 90mm

Specifications

High beam: 45W<3250 lumens>
Low beam: 25W<2250 lumens>

Fitment

Vehicles with HD stock 5-3/4 inch headlights

Please note

Not road-legal in Japan (does not pass shaken)

---

*Can be installed on the models below and on bikes fitted with the headlights of the models below.

■Sportster series
('04-'16) XL, XR1200

■Dyna series
('91-'16)
*Not FLD, FXDF, or FXDWG '05 and earlier

■Softail series
('84-'16) FXSTS, FLSTS　
('00-'16) FXCW/C, FXS, FXSB, FXSBSE, FXST, FXSTB, FXSTC, FXSTD　
('05-'16) FLSTSB, FLSTSC
('10-'16) FLSTSE

■V-ROD series
('06-'11) VRSCD, VRSCDX
