Part No.: G3-00141
King Seat & 38ET Fenderless Kit SR400/FI ('10-'17) BLACK
¥49,830 JPY
Shipping & tax quoted on inquiry
Out of stockExpected: TBA (please inquire)
King seat and fenderless kit for the SR400 FI model.
Seat & fender kit for the SR400/FI!
King Seat and fender eliminator kit for SR400/FI models. Installs by relocating the battery to the top of the fender and changing the dimensions of the front mount.

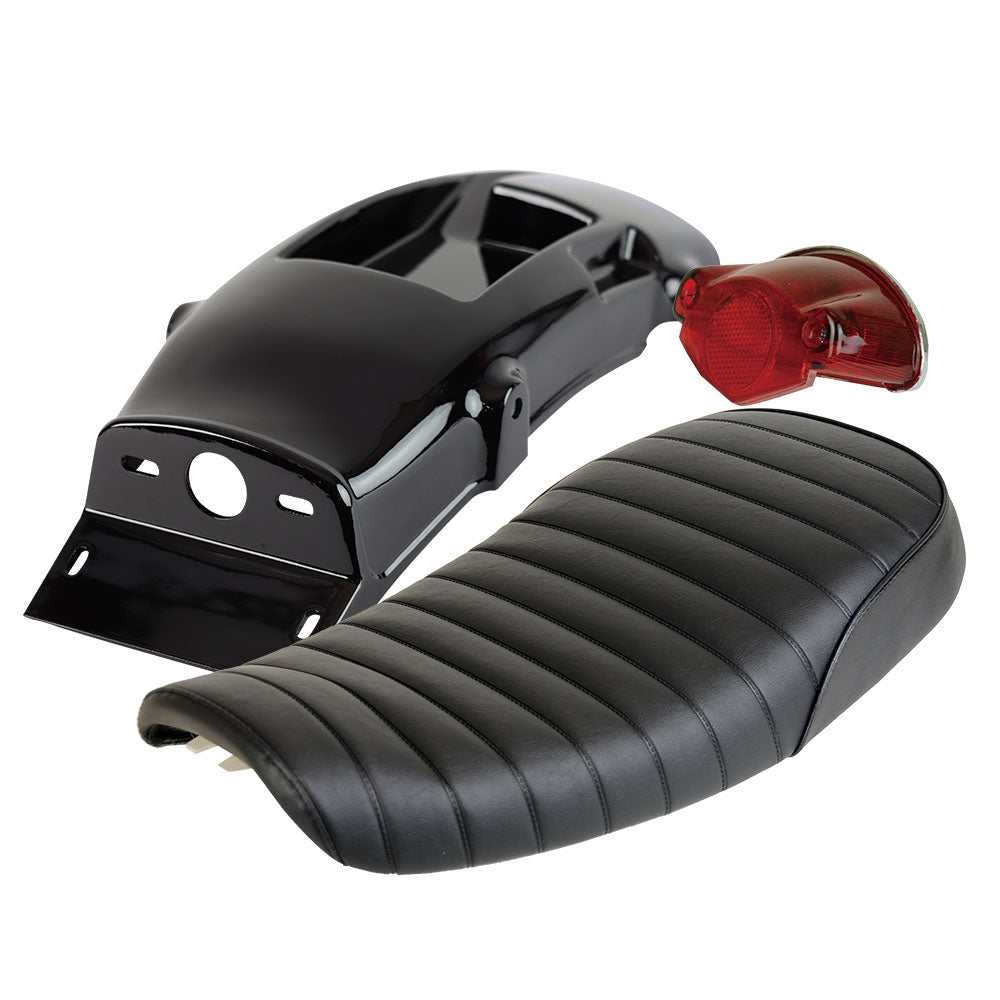

*Image shows King Seat BK/38ET taillight
3D Scanner.
A fender eliminator kit that "definitely suits the SR"
Using a 3D scanner, we created a fender eliminator kit that "definitely suits the SR"
Please note
*If the bike is lowered or fitted with tires taller than stock, it may interfere at full stroke.Fitment
SR400/FI (10'-17')Size
"<Seat> Width: approx. 270mm Length: approx. 530mm<Fender> Mounting width: approx. 180mm Fender inner width: approx. 155mm Front-to-back length: approx. 365mm Battery mount (front-back x left-right x depth): approx. 90mm x 115mm x 26mm
Material
Seat base, fender: FRP Cover: Synthetic leatherContents
Seat x1 Seat mounting bolts x1 set Fender kit x1 Taillight x1About the license plate angle
*The license plate angle is 55 degrees from below*The new license plate standard applies to vehicles newly registered on or after October 1, 2021.
*For earlier vehicles, there is currently no specific angle requirement beyond being "easy to read."
FAQ
Q Why can't it be installed on the Type 5 (2018 model year-)?
A
It interferes with the battery and ECU, and their bracket is welded to the frame, so that part gets in the way. (Cutting required)
*In theory it can be installed as long as nothing interferes, but relocating them would be difficult because of the many coupler wires.
*In theory it can be installed as long as nothing interferes, but relocating them would be difficult because of the many coupler wires.
