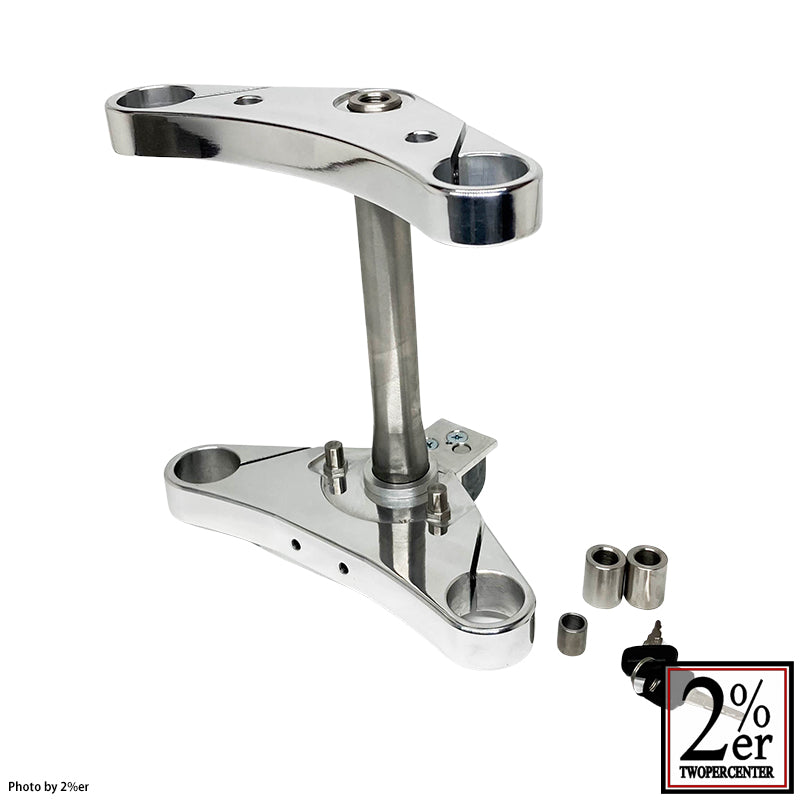

2° Rake Triple Tree SR400/500 (2%er Original)

Make your chopper easier to ride!
Lighter handling!

When installing long forks, lowering the rear, or switching to a 21-inch front,
handling tends to get heavy. To correct this to light, easy handling,
this triple tree kit rakes the front fork angle out by 2 degrees.

By raking out the front fork and correcting the trail value, which greatly affects a motorcycle's handling,
it prevents wobble at low speeds and maintains straight-line stability at high speeds,
giving you stable, light handling.

The included handlebar riser collars allow the stock risers to be installed; the mounting width is set to 100mm, the same as stock.






Increasing trail makes handling heavier; decreasing it makes it lighter.
Raking the fork gives a more chopper-like silhouette, and the lower center of gravity makes pushing and maneuvering the bike
much lighter, so it is also recommended for female riders without much arm strength.
A set of machined duralumin triple clamps, made thicker than usual materials for greatly increased strength and rigidity, and a high-rigidity stainless steel stem shaft.
A product packed with the know-how of 2%ER, who have built many long-fork SRs.

---

Material

Body: duralumin, buff polished
Neck shaft: stainless steel

Contents

Upper bracket, lower bracket, neck shaft,
handlebar stopper, lower bearing race collar,
handlebar riser collars, steering lock bracket (bolt-on/removable on the stem side),
lock, weld-on collar for the lock receiver, mounting bolts

Fitment

SR400/500

Please note

*Use the stock stem bolt.
*Basically, when using it on 2001-and-later models (RH01J, RH03J, RH16J), use the stock stem bolt for up to 1JR (90105-14102)
*The stock ignition key cannot be installed
*To install the steering lock, the included collar must be welded to the frame.
*Installation on bikes with front forks and rear shocks close to stock length
is not recommended, as the handling becomes too light when riding.
Even on long-fork or rear-lowered bikes, wobble may occur when riding depending on the bike's geometry.
*Modification may be needed depending on the model year and surrounding parts.
