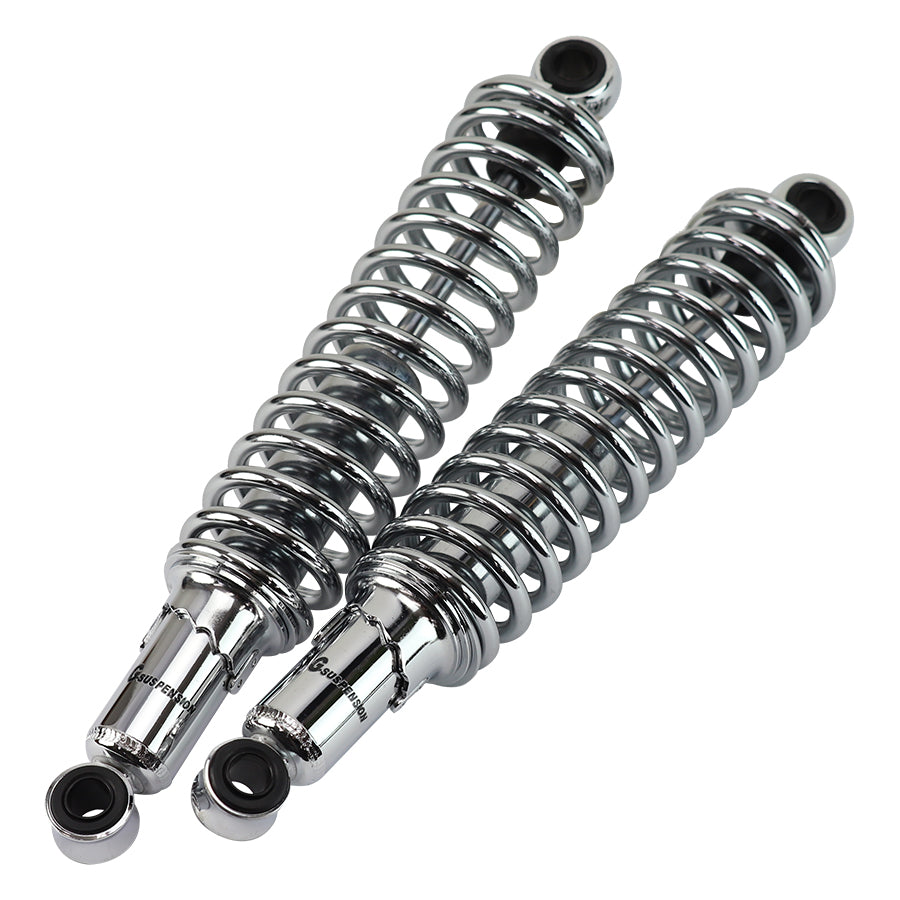

G-SUSPENSION340 Chrome 12-12

For VMX, vintage off-road, old bikes and classic bikes

340mm long suspension. Perfect for VMX, vintage off-road, old bikes and classic bikes.
Approx. 100mm of stroke (approx. 90mm to the bump rubber), with a steel body that suits vintage and classic bikes.




*SR installation example (14-14)

Please note

*At full compression it shortens to about 240mm, so it may cause interference on some models.
*You need to check whether anything interferes at full extension on your model. Lift the bike with a jack, remove the shocks and check at 340mm.
*Interference on models other than the SR has not been checked. Please check and adjust on the actual bike
(For professionals)

Points confirmed on SR400/500

*On the SR400/500, the swingarm interferes with the stock muffler bracket and brake rod at full extension. Depending on the silencer, the axle shaft or swingarm may also interfere.




*SR installation example (14-14)

---

Size

Mounting hole center distance: 340mm
Outer diameter: φ60mm
Mounting width: 21mm

Material

Steel (aluminum for the shock top only)

Contents

Main unit x2

Fitment

GRASSTRACKER (Big Boy may require cutting the rear frame)
*Also fits other models with 12mm upper/12mm lower mounts.

*SR installation example (14-14)
