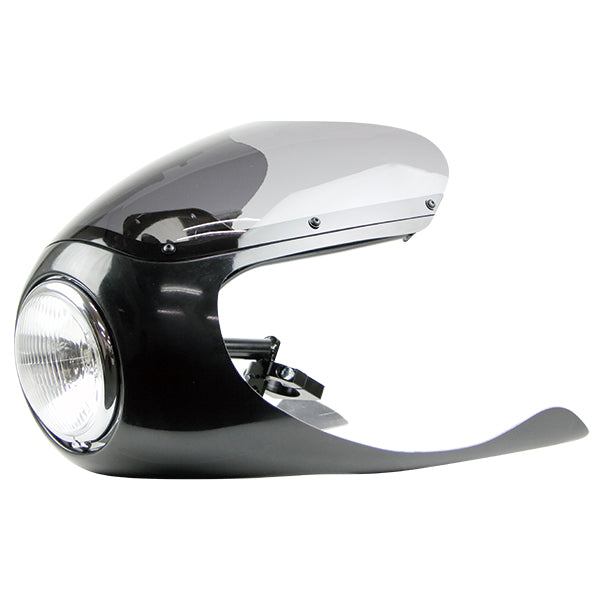

ARROW Cowling Kit Sportster ('04-'14)

Original ARROW cowl with a sharp design like no other

A half cowl designed around a slim, compact concept from tip to tail. Bolt-on kit for the Sportster. An unusually slim cowl, ideal for a sharp look.

Fitment

Sportster ('04-'14)

Important notes (please be sure to read)

Notes common to all model years

[Parts that require modification or workarounds]

■The headlight wiring does not match the stock coupler, so wiring modification is required.

-------------------------------

[Parts that may be required parts]

■The stock throttle cable may interfere depending on the angle. In that case, rerouting, fabricating a guide, replacing the throttle holder, adding a steering stopper, etc. will be required.
■Due to brake hose routing, you may need to replace the hose.
■With the stock cable routing, cables may move poorly or interfere. Workarounds such as routing the throttle cable on the left side of the neck and the clutch cable on the right side of the neck will be needed.
■In addition, depending on the conditions of the mounted parts, there may be interference or additional modification may be needed, so please think of this product as a custom base material.

---

Notes for '04-'14 models

■Bikes with φ39mm Narrow Glide forks Other than cannot be fitted.
■1200X, 1200C series ('11-), 1200T, 883L ('11-) and XR cannot be fitted
(All '04-'10 models except XR can be fitted)
■1200C ('04-'10): the cowl can be installed, but the separately sold meter bracket cannot (the meter case and indicators are different)

Notes for '86-'03 models

■If the horn is mounted on the left side of the front tank bracket, it must be relocated.
■'86 and '87 have a different front end, so our steering stopper cannot be used unless you install an '88-'03 39mm fork front end. Interference is expected, so a steering stopper will need to be fabricated.

About fitment on '15 and later models

Not yet confirmed on an actual bike.
It will probably fit, but some workarounds may be needed

---

Items required separately

■Two types of meter brackets are available separately.
>>For '95-'14 electric stock meter<<
>>For φ60 and φ80 meters<<

■A steering stopper is required separately
>>Sportster ('04-'14) for 39mm Narrow Glide<<
>>Sportster ('88-'03) for 39mm Narrow Glide<<

■Clip-on handlebars required (interference with non-GOODS products unconfirmed)
■It is designed around our clip-on handlebars; with other manufacturers' products, the cowl, etc. may require modification.
■Mirrors are currently not included, so you will need to install your own.

---

Size

Max width: approx. 410mm Height: approx. 350mm Lower front-rear length: approx. 525mm Light mounting area: approx. 160mm

Material

Cowl: FRP Screen: ABS Bracket: steel

Contents

Cowl, screen x1 Screen mounting bolts for 6 points Headlight x1 Bracket x1 set

Please note

Included headlight: no E-mark

About FRP / black gelcoat

• FRP is black from the start, but this is not a painted black and is not a "clean black." It can be used as is, but it will discolor and fade over time, so we recommend painting it.
• FRP products have unavoidable scuff marks from the molding process, such as when removed from the mold. Slight fading is also considered "within the acceptable range for FRP products." Please think of it strictly as a base for paint.
• FRP products may crack if excessive force is applied.

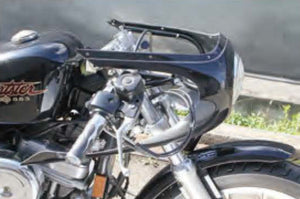

Reference image
