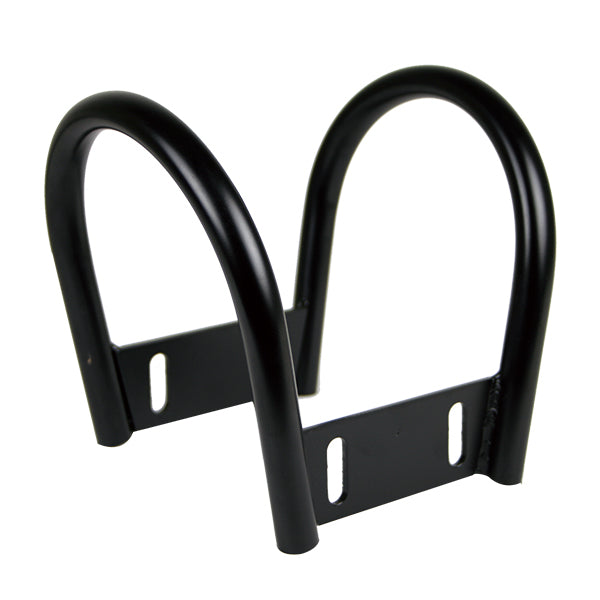

Pipework Stabilizer SR400/500

Increases front rigidity
Custom building that doesn't compromise on riding

A stabilizer ideal for increasing front-end rigidity when running fenderless. Add the dedicated fender to upgrade it to the pipe-work front fender.

Compatible with FIRESTONE and more

Can be installed even with tall-profile tires like FIRESTONE. For riders who don't want a fender but don't want to lose front rigidity.

A design that doesn't get in the way of your style

Designed to be as simple as possible and blend into the bike, so it looks natural even on chopper and bobber styles. As the installation images for each model show, it suits any style perfectly.

Increase front rigidity with a stabilizer

This one part restores the front rigidity lost by going fenderless, for a "full custom you can actually ride."

Fitment

SR400/500
*The '77- TX650 and XS650SP have φ35 forks, the same as the early SR, so it can be installed.
*The '73-'76 TX650 and earlier XS1, XS650 (E), etc. have different forks, and installation has not been confirmed.

Size

Tube diameter: φ15.9mm Overall height: approx. 160mm Overall width between forks: approx. 130mm Front-rear bolt pitch: approx. 60mm Bolt hole diameter: approx. 9mm
<Compatible tire outer diameter>
Stabilizer only: 710mm With fender: 690mm
Inner width: 121mm
If the tire is wider than 108mm, the stabilizer bolts must be fitted after the tire is installed.

Material

Steel

Contents

Main unit x1

Please note

*The front wheel must be removed for installation.

---
