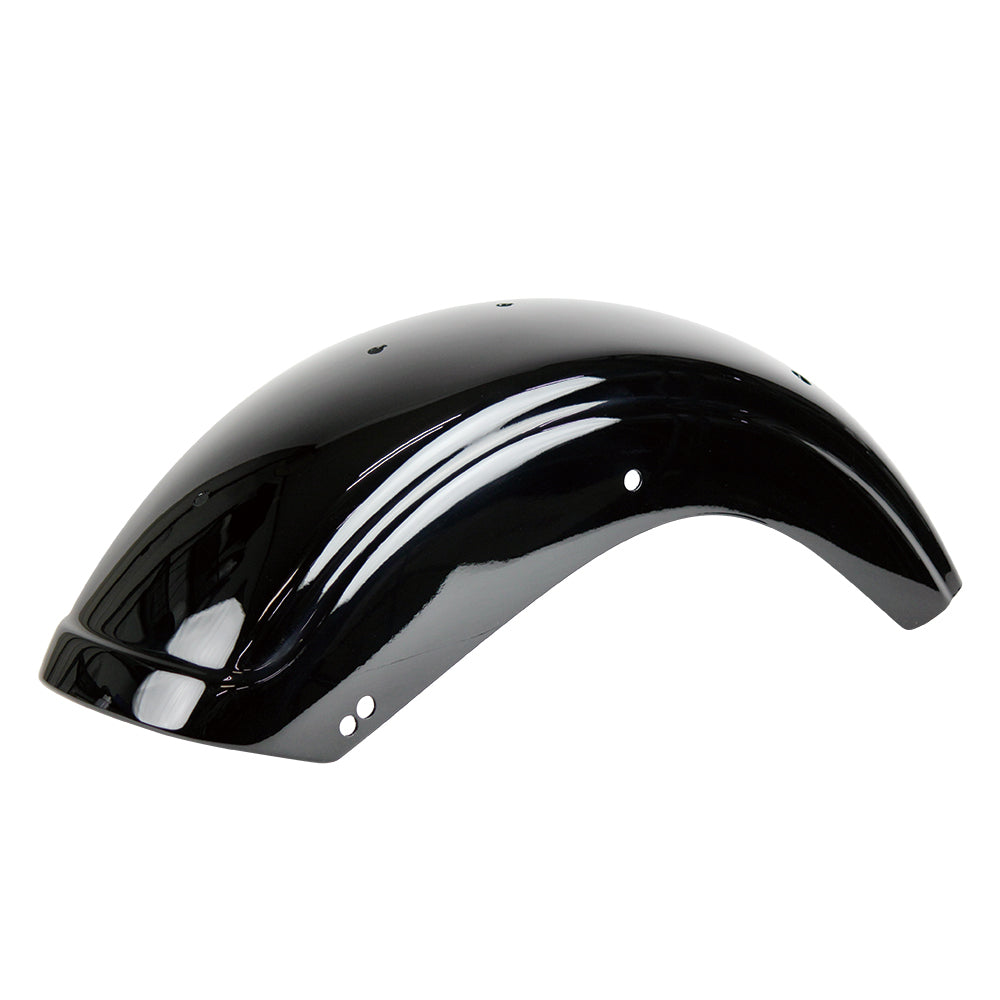

Short Rib Fender DYNA Black Painted Finish

Keeps the stock look intact
A more stylish short fender

Short rear fender for Dyna ('06-).
The end line rises more steeply than the FXDB's, and the fender side visible from the side is slimmer. The end has a molded design that flows from the sides
*An LED taillight (61-89591, sold separately) can be mounted underneath

Please note

*Cannot be installed on FXDWG or FXDF
*Side license plate conversion required

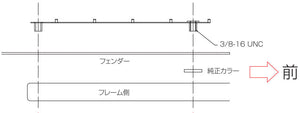

*Use the included E-rings in place of the stock plastic seat retaining rings.
*Please note that if the paint is too thick at the seat mount, the retaining E-rings will not fit.
*The included couplers and bullet connectors match the stock harness couplers. Modify the wiring to suit the taillight and turn signals you install.
*After securing the wiring with the wire clips, press them against the fender and check that there is no contact with the tire.
*Use the stock mounting bolts and collars.

Size

Approx. 850mm Width: approx. 210mm

Material

FRP (Fiber Reinforced Plastics)

Contents

Fender x1 Inner bracket x2 Blanking cap x2 Coupler x1 Bullet connector x8

Fitment

DYNA ('06-'16) Not compatible with FXDWG, FXDF
