Light & License Plate Relocation Kit RH1250S Sportster S

Taillight&number plate Relocation Kit
for Sportster-S

Bracket KIT that cleans up the clunky stock rear end and puts more emphasis on the rear tire.
A set of the side license plate KIT and turn signal/taillight relocation brackets.

---

Before/After.
Emphasizes the rear with more style

Cleans up the clunky stock rear end and puts more emphasis on the rear tire

Before


After

Variable Plate.
Vertical/horizontal adjustable plate

Uses a vertical/horizontal adjustable plate.
*Please note that a vertical license plate cannot be used on public roads









License plate light included

Kellermann Bullet Atto DF
Kellermann Bullet Atto DF recommended

For turn signals, the Kellermann Bullet Atto DF, which combines taillight and turn signal, is recommended.

With the optional 15mm extension, it also passes shaken inspection.

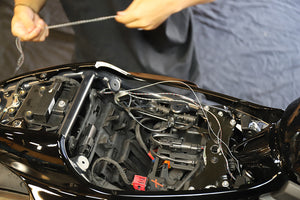

*Modify the existing extension wiring for use.

---

Size

[Turn signal bracket]
Width: approx. 114mm　
Length: approx. 55mm　
Height: approx. 25mm　

[With license plate bracket installed]
Width: approx. 230mm　
Length: approx. 160mm　
Height: approx. 130mm

Material

Stem: Steel　
License plate bracket: aluminum　
License plate light: resin

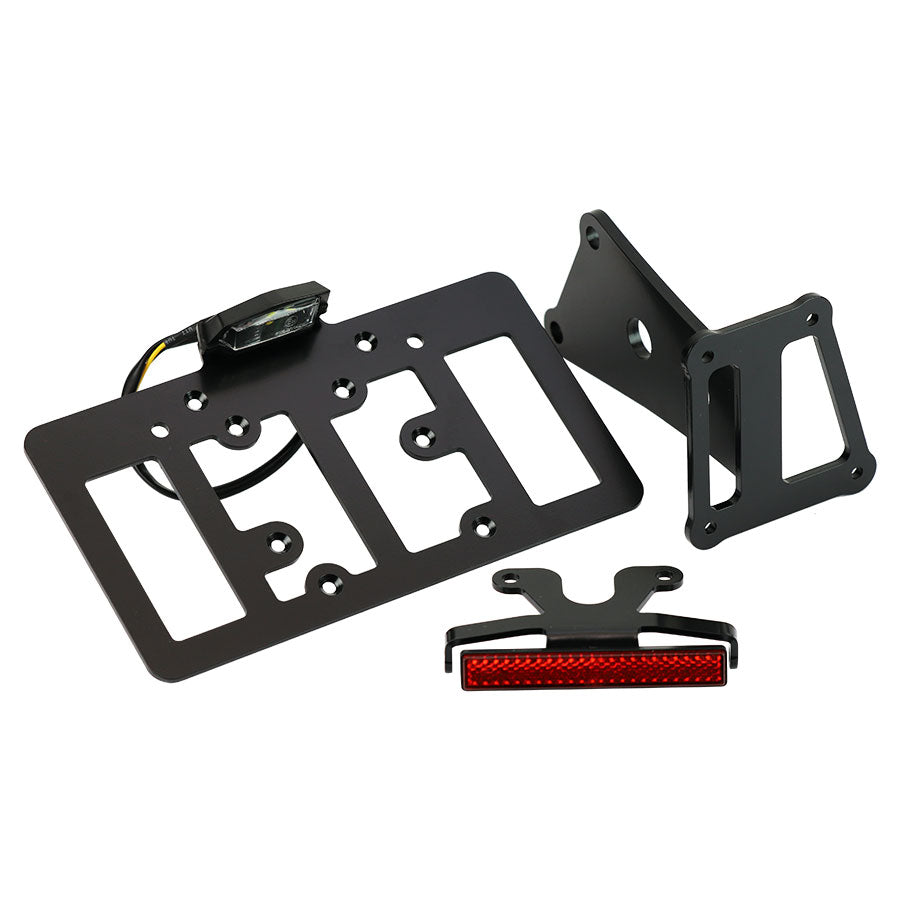

Contents

Bracket x2　
License plate bracket x1　
LED license plate light x1　
Bolt x6　
Nut x6　
Washer x4　
Reflector x1　
Terminal set x1
Wires x2　

Fitment

Sportster S (RH1250S 2021-)

Please note

*Some wires are thin, so we recommend also soldering them.
*Depending on the turn signals and taillight installed, hyper flash or similar may occur. In that case, take measures such as adding resistors.
