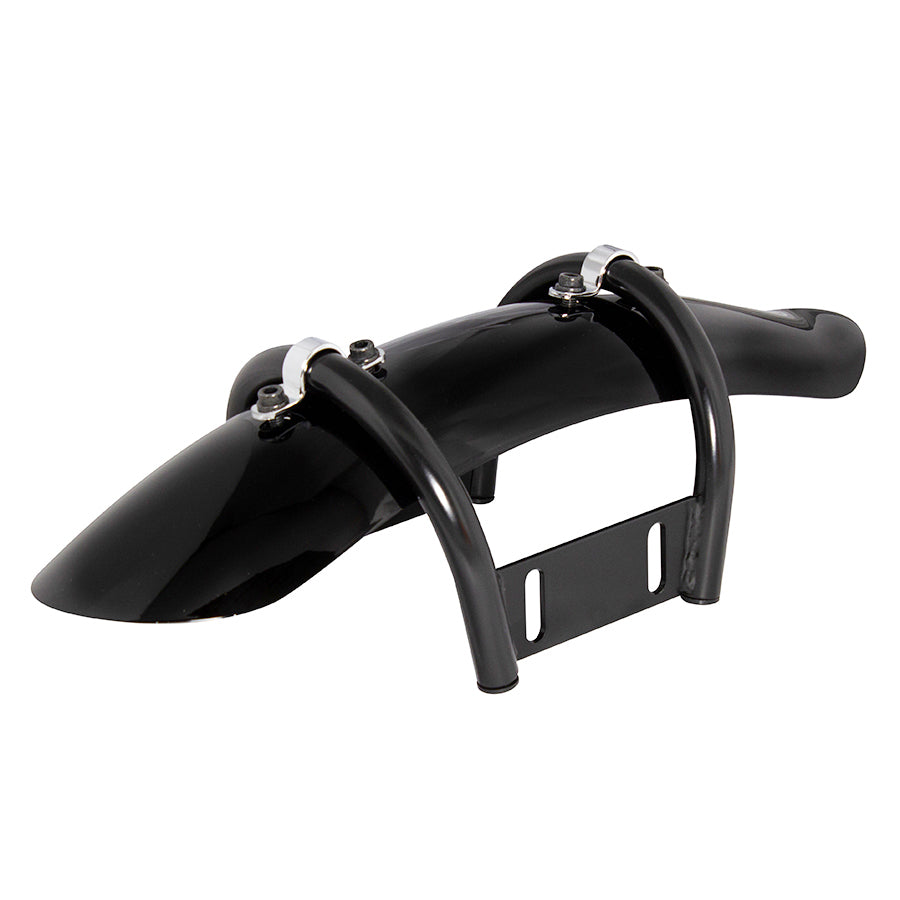

Pipework Front Fender Black Painted Finish Big Boy

Doesn't spoil your style
GOODS original front fender

Bolt-on front fender. Mounting position adjusts up and down, so it can be installed even with tall-profile tires like Firestone. The bracket doubles as a stabilizer, also improving front rigidity.

Compatible with FIRESTONE and more

Until now, fitting a fender with tall-profile tires was difficult, but our pipe-work fender installs without any problem. If you'd given up on a front fender, this is your solution.

A design that doesn't get in the way of your style

Designed to be as simple as possible and blend into the bike, so it looks natural even on chopper and bobber styles. As the installation images for each model show, it suits any style perfectly.

Doubles as a stabilizer to increase front rigidity

This one part restores the front rigidity lost by going fenderless, for a "full custom you can actually ride."

Fitment

Big Boy
*On the regular Grasstracker, the stabilizer mounting point is lower than on the Big Boy, and the top of the stabilizer interferes with the tire, so it cannot be fitted.

Size

Fender
Length: approx. 410mm Width: approx. 104mm Tube diameter: φ15.9mm
Stabilizer
Overall height: approx. 121mm Overall width between forks: approx. 135mm Front-rear bolt pitch: 62mm Bolt hole diameter: 9mm (M8) Inner width: approx. 128mm
*If the tire is wider than 112mm, the stabilizer bolts must be fitted after the tire is installed.

Material

Fender: FRP Bracket: steel

Contents

Fender x1 Bracket x1 set Pipe-work stabilizer x1

Please note

*The front wheel must be removed for installation.
*Confirmed compatible with 4.00-size FIRESTONE tires.
*It may not fit if the tire type or size is too large.

---
