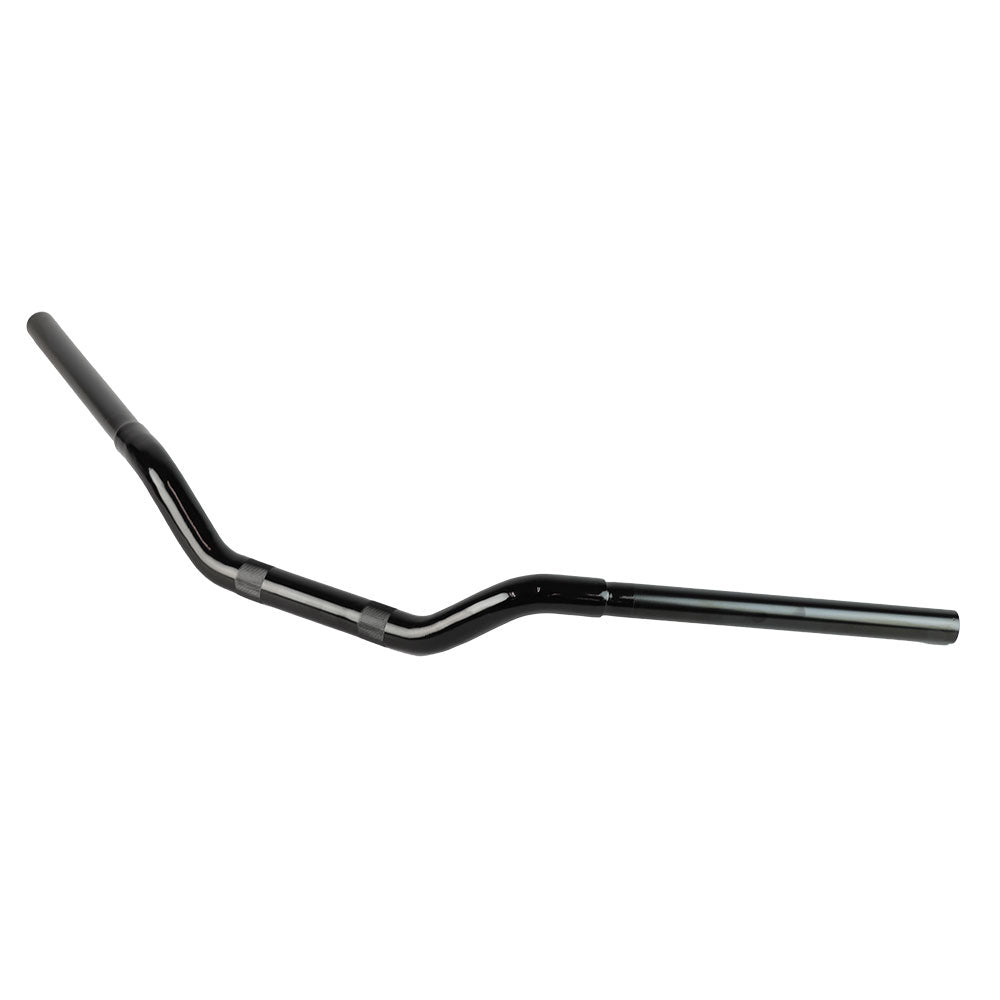

G.W Comfort Bar for RH975/Nightster

To the "Comfort Bar" series
Now available for the RH975 Nightster

Ride in comfort.
The RH975 Nightster model has joined GLEAMING WORKS' "Comfort Bar" series, which is obsessive about riding position.

ABOUT COMFORT BAR

The COMFORT BAR is designed around a handlebar position that suits Japanese riders' builds, based on the developer's own riding experience and feedback from Harley-Davidson owners.




It gives your arms more room and puts less strain on your lower back, making it ideal for long touring.
Model height: 172 cm

Size

Width: approx. 700 mm　
Height 1 (with grip section horizontal): approx. 52 mm
Pullback: approx. 182 mm　
Height 2 (rotated upright): approx. 71 mm　
Pullback: approx. 183 mm　
Clamp width: approx. 120mm　
Handlebar diameter: clamp area φ25.4 mm　
Grip area φ22.2 mm

Easy installation & comfort
A comfortable riding position

No need to replace hoses or cables.
The handlebar position moves back approx. 108 mm compared with stock for a comfortable riding position
(Model height: 172 cm)

【Before】

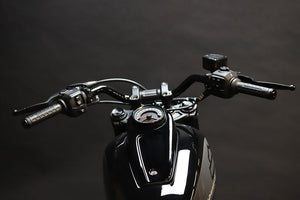

【After】

Details.

Double-coat finish with highly rust-resistant cationic electrodeposition coating plus a powder-coat top coat
Has a slot for locating the switch housing. Stock bar-end mirrors can also be fitted.

---

Material

Steel

Contents

Main unit x1

Fitment

RH975　2022’

Please note

Due to individual variations, the banjo may point too far outward, putting tension on the brake hose.
In that case, loosen the banjo bolt slightly and change its direction.
*Loosening it too much can cause fluid leaks or air in the system, so adjust the direction carefully and tighten it securely
*If turned too far inward, the brake hose will contact the tank, so please be careful

---
