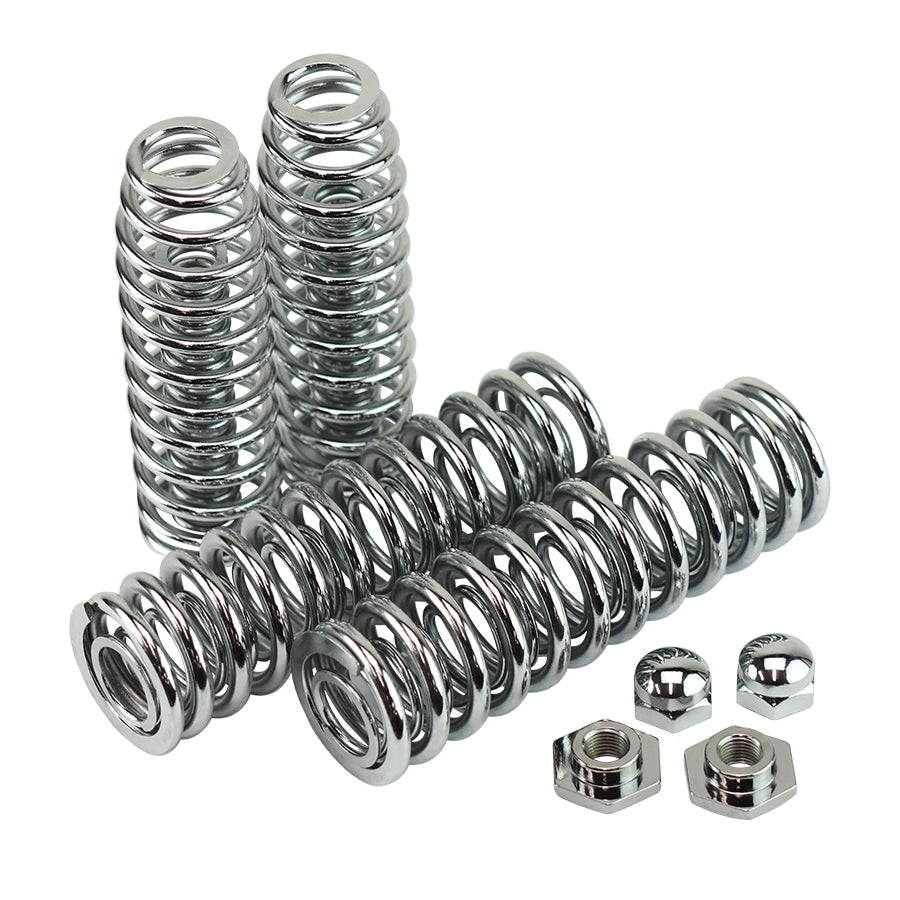

Chrome Spring Set for GW74 Springer Fork

Chrome Spring Set for GW-74 Springer

Fits the GW-74 Springer. Chrome-plated replacement spring set.

Please note

*Installation requires special tools and knowledge; this is a professional-use product.
*We cannot answer questions about the replacement procedure, so please have a knowledgeable custom shop do the work.

Material

Steel

Size

[Upper outer spring]
Overall length: approx. 140 mm　
Outer diameter (wide end): approx. 43 mm　
Inner diameter (narrow end): approx. 21 mm　
Wire diameter: approx. 5 mm

[Upper inner spring]
Overall length: approx. 99 mm　
Outer diameter: approx. 21 mm　
Inner diameter: approx. 13 mm　
Wire diameter: approx. 3.5 mm

[Lower outer spring]
Overall length: approx. 160 mm　
Outer diameter: approx. 48 mm　
Inner diameter: approx. 35 mm　
Wire diameter: approx. 6.5 mm

[Lower inner spring]
Overall length: approx. 160 mm　
Outer diameter: approx. 30 mm　
Inner diameter: approx. 23 mm　
Wire diameter: approx. 3.5 mm

Contents

Spring x8
Top nuts, 2 types
x2 sets

Fitment

Universal
