Pipework Front Fender KIT SR400/500

Doesn't spoil your style
GOODS original front fender

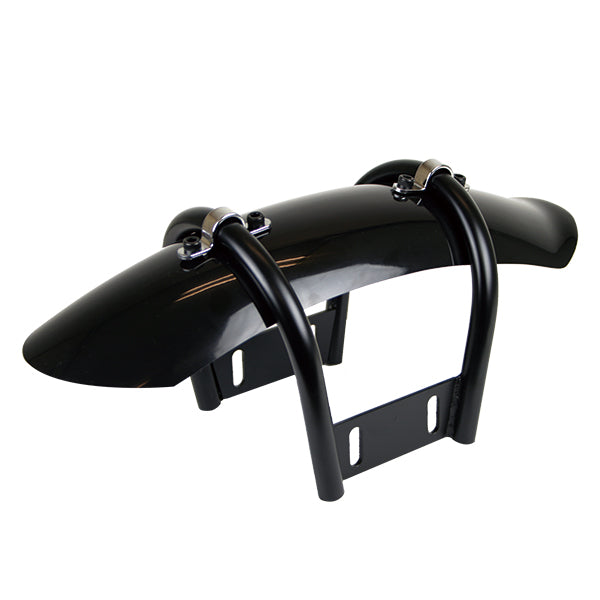

Bolt-on front fender. Mounting position adjusts up and down, so it can be installed even with tall-profile tires like Firestone. The bracket doubles as a stabilizer, also improving front rigidity.

Compatible with FIRESTONE and more

Until now, fitting a fender with tall-profile tires was difficult, but our pipe-work fender installs without any problem. If you'd given up on a front fender, this is your solution.

A design that doesn't get in the way of your style

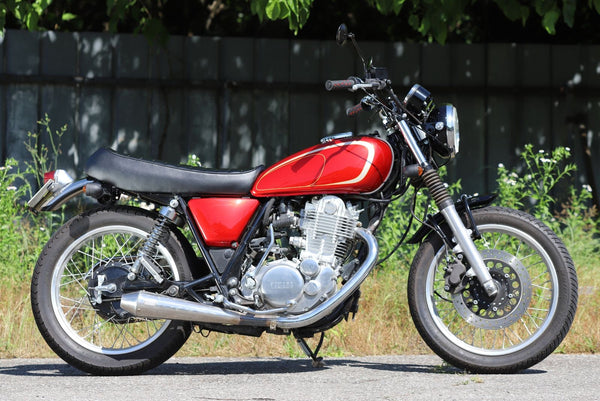

Designed to be as simple as possible and blend into the bike, so it looks natural even on chopper and bobber styles. As the installation images for each model show, it suits any style perfectly.

Doubles as a stabilizer to increase front rigidity

This one part restores the front rigidity lost by going fenderless, for a "full custom you can actually ride."

Fitment

SR400/500
*The '77- TX650 and XS650SP have φ35 forks, the same as the early SR, so it can be installed.
*The '73-'76 TX650 and earlier XS1, XS650 (E), etc. have different forks, and installation has not been confirmed.

Size

Fender
Length: approx. 410mm Width: approx. 104mm Tube diameter: φ15.9mm
Stabilizer
Overall height: approx. 160mm Overall width between forks: approx. 130mm Front-rear bolt pitch: approx. 60mm Bolt hole diameter: approx. 9mm Inner width: 121mm

<Compatible tire outer diameter>
Stabilizer only: 710mm With fender: 690mm

Material

Fender: FRP Bracket: steel

Contents

Fender x1 Bracket x1 set Pipe-work stabilizer x1

Please note

*If the tire is wider than 108mm, the stabilizer bolts must be fitted after the tire is installed.
*The front wheel must be removed for installation.
*Confirmed compatible with 4.00-size FIRESTONE tires.
*It may not fit if the tire type or size is too large.

*On the 3rd-gen SR and later, it mounts in a slightly higher position due to the height of the caliper mount. With stock-size tires there will be a slight gap as shown in the image

About FRP / black gelcoat

• FRP is black from the start, but this is not a painted black and is not a "clean black." It can be used as is, but it will discolor and fade over time, so we recommend painting it.
• FRP products have unavoidable scuff marks from the molding process, such as when removed from the mold. Slight fading is also considered "within the acceptable range for FRP products." Please think of it strictly as a base for paint.
• FRP products may crack if excessive force is applied.

---
